Fully automatic glue injection production line

Equipment advantages:

The main body of the fully automatic glue injection production line is a firm and beautiful aluminum profile frame structure. It has four primary functions: continuous glue injection, dislocation glue injection, broken glue injection and dot glue injection.

• Three-color indicator lights are divided into three sections: glue injection, wave receiving and motionless roller. Each section is an independent frame, which is convenient for transportation and disassembly.
• The feed is equipped with a lack of material shutdown sensor and two side blocks to prevent the material from going off.
• A pressure plate counterweight presses the material to increase the tension. According to the actual material thickness, the pressure plate tension can be increased or reduced for more stability.
• A slitting knife is installed before glue injection and can be selected according to needs. The slitting knife is equipped with a scale for quick knife alignment.
• Each gun nozzle is independently adjustable and switched and can be turned on/off on the display.
• After glue injection, there are two sets of cooling fans on the upper and lower sides, and the wind speed of each set is independently adjustable. After receiving the wave, a set of cooling fans on the upper and lower sides are also independently adjustable.
• The upper and lower needles of the wave-receiving machine can be adjusted up and down and forward and backward to the required folding height by adjusting a hand wheel.
• The non-powered roller has a hinge connected to the wave-receiving material output, solving the problem of product glue line disconnection.

Equipment use:

This equipment is used for the injection molding after the filter paper is pleated.

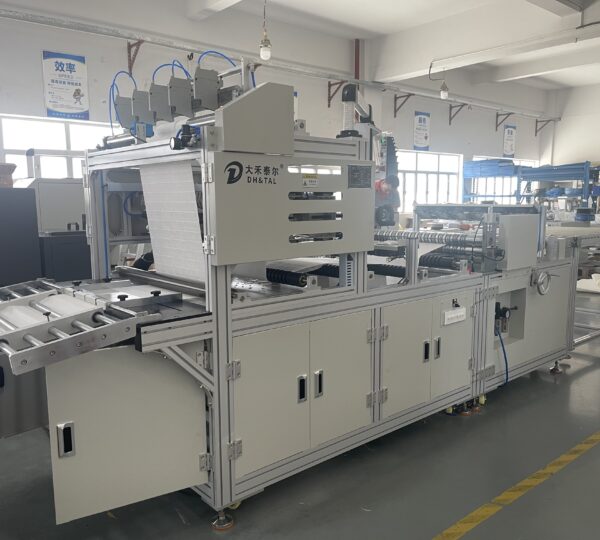

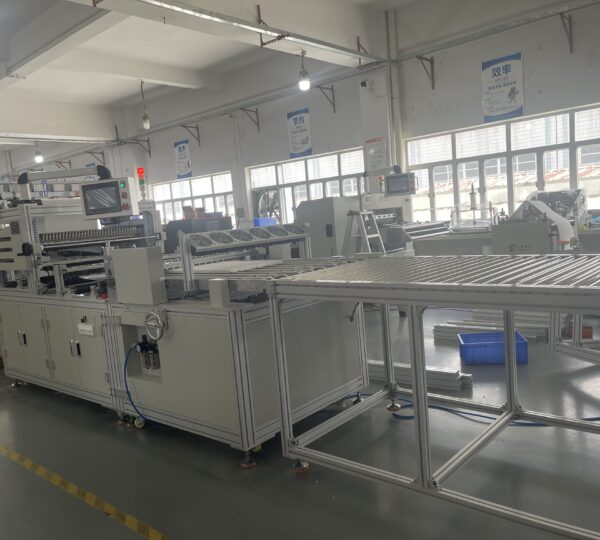

Customer site pictures:
