In filter manufacturing, process automation can greatly reduce human errors and achieve consistent product quality in standardized production. Therefore, we need to use paper pleating machines in filter manufacturing. The design of paper pleating machines integrates multiple functions into a single, tight system. They mainly consist of two main units: a slitter feeder and a filter paper folding machine. The slitter feeder cuts the raw filter paper into the required width accurately, ensuring that the material is ready for the folding process. After that, the filter paper folding machine neatly folds the paper into the required shape. This combination of dual-function design not only speeds up the production process but also maintains the consistency and quality of the folded material while reducing manual intervention and achieving a higher degree of production automation.
Technical components and design features of paper pleating machines

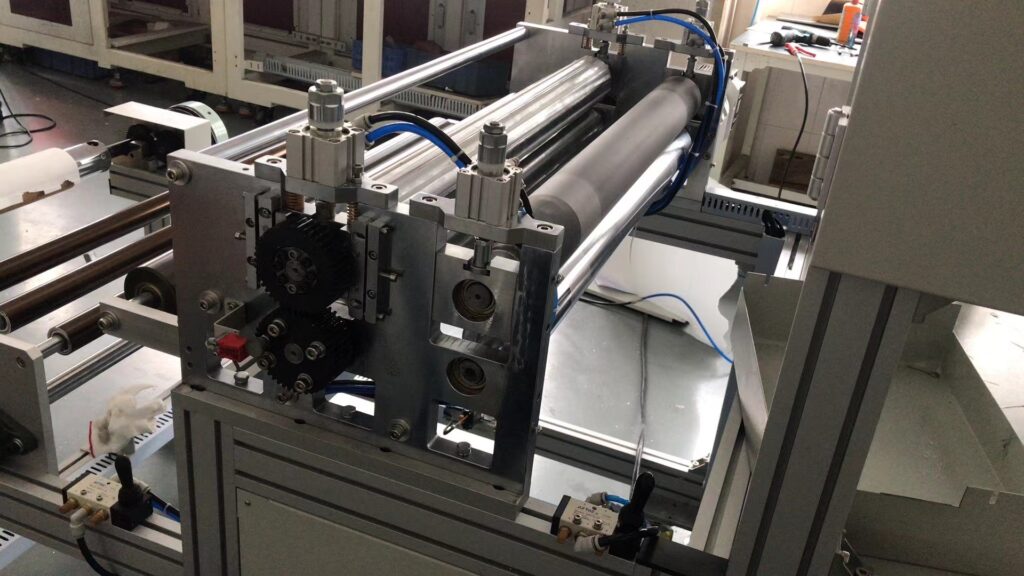

The paper pleating machine is mainly divided into two mechanisms, one of which is the feeding machine, which is responsible for accurately cutting the filter paper into the specified width. Also included in the slitter feeder is an integrated paper feeding drive wheel equipped with a cylinder lifting function, which simplifies the paper feeding process by ensuring that the paper is loaded smoothly and consistently. Another key mechanism is the filter paper folding machine, which automatically folds the paper into the required pleats, maintaining the uniformity of each fold and ensuring that the structure and performance of the final product remain consistent. In addition, the paper pleating machine is designed with an automatic shutdown function that starts when no material is detected, which not only prevents equipment damage but also avoids unnecessary energy consumption.
Optimize the feeding mechanism to achieve consistency and efficiency

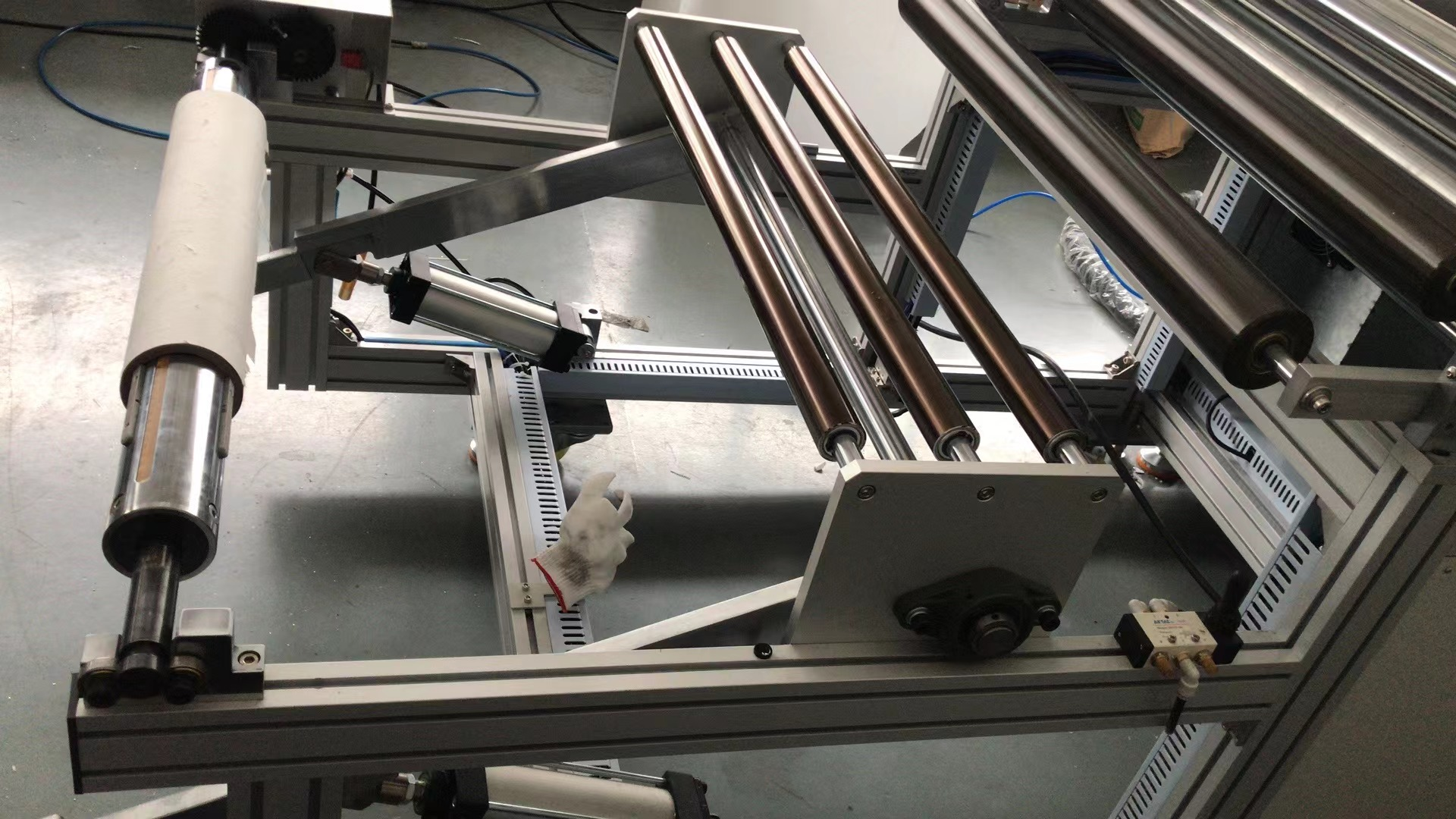

To achieve automation in the filter manufacturing process, we need to ensure the consistency and efficiency of the feeding mechanism. The feeding mechanism of the paper pleating machine precisely handles raw materials through its specialized design. An important part is the feeding drive wheel, which includes a cylinder lifting function. This function allows for smooth and controlled paper feeding, ensuring that each sheet of paper enters the slitting feeder evenly and without interference.
In addition to the cylinder lifting function, the paper pleating machine also has a conveying and storage limit function, which plays a key role in maintaining the consistency of the folded material by controlling the flow of paper during the folding process. At the same time, it prevents paper from gathering or misalignment, which leads to errors in the pleating process and can also reduce human errors, thereby ensuring that the feeding is in a controlled and continuous manner. The automatic shutdown function, also integrated into the paper pleating machine, further enhances its performance. This safety feature stops the machine when it detects missing material, preventing potential equipment damage and avoiding waste. This intelligent control improves the operational safety of the system.
Improve process quality with the temperature management function of the paper pleating machines
The paper pleating machine also integrates temperature management functions into the production line to ensure the production of high-quality filter paper and maintain optimal process conditions under automated production. Specifically, the front table features a preheating function, while the rear table combines heating and insulation functions. These temperature controls ensure that the filter paper reaches the ideal temperature before and during the folding process.
The preheating function on the front table raises the temperature of the paper to a level that facilitates smooth folding and minimizes the risk of paper damage, ensuring that the paper is more flexible and easier to handle. At the same time, the heating and insulation functions on the rear table maintain the optimal temperature throughout the rest of the process. The insulation retains the necessary heat, while the heating function compensates for any temperature drop that may occur during the handling and folding stages. Incorporating these temperature management features into paper pleating machines ensures high-quality filters even under automated production.
Precise, stable operation with servo motors
Automation technology is made possible by the use of servo motors to drive key mechanical movements within production equipment. In paper pleating machines, servo motors drive the frame during the folding and lifting process. Their ability to provide precise, controlled movement ensures that the system folds and lifts the paper with exact accuracy, making the entire process more efficient. Servo motor drive systems improve the automation of paper pleating machines by eliminating many of the variables associated with manual adjustments. By enabling precise control of mechanical movement, these motors help the system automatically adjust and adapt to changing operating conditions. With servo motors, the folding and lifting process becomes more uniform, reducing the possibility of errors and increasing production speeds. It can operate continuously and uninterrupted, even under high production demands.
Driving automated production in filter manufacturing
Paper pleating machines can improve process automation in filter manufacturing. By integrating a range of automation features, these machines provide a one-stop solution to improve efficiency and quality. With intelligent control systems, including automatic shutdown and real-time adjustments, the pleating machine ensures continuous, reliable production while minimizing downtime and maintenance costs.
