In high-volume HVAC filter production environments, manual loading delays can account for up to 20% of total production cycle time, increasing labor costs and reducing production. The HVAC filter pleating machine with Dahe Intelligence addresses this issue head-on with a dedicated feed drive wheel equipped with a cylinder lift function. First, the cylinder smoothly raises and lowers the drive wheel to engage or disengage the pleating media, allowing for fully automatic loading of filter media without manual intervention.
Second, the integrated conveyor and storage limit sensors maintain consistent material buffering, eliminating gaps or overlaps in the pleating sequence and ensuring a buffer height of 80-120 mm. In addition, when the material supply is low, the machine detects a “no material” condition and automatically shuts down the feed module to prevent misfeeds and downtime. The result is a feed accuracy of over 99.5%, a 30% reduction in labor costs, and uninterrupted precision pleating even during extended production runs.

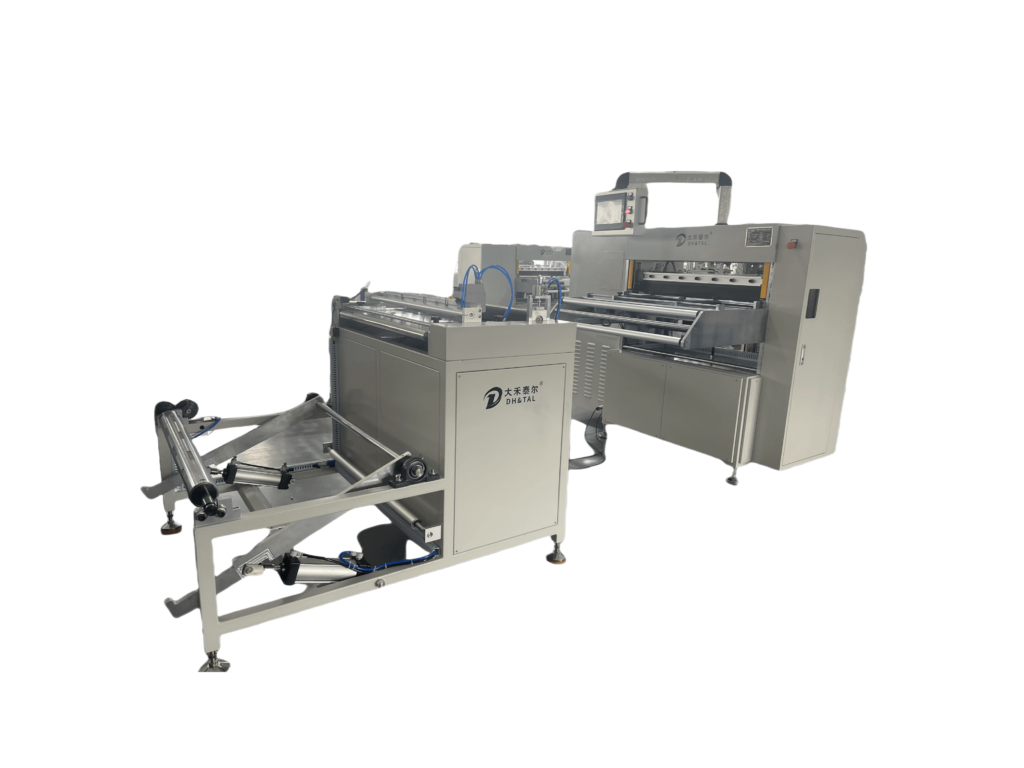

HVAC filter pleating machine with cylinder-driven lifting mechanism
The core innovation of our HVAC filter pleating machine for automatic feeding is the cylinder-driven lifting mechanism integrated in the feeding drive wheel. The double-acting cylinder can lift the drive wheel 15 mm in 0.2 seconds to pick up the next sheet. In addition, the cylinder can be lowered with a controlled deceleration to avoid tearing or misalignment of delicate filter media. The cylinder pressure is calibrated to 5 bar to ensure consistent meshing force on filter media of different thicknesses (0.5 to 2.0 mm), ensuring accurate feeding of even high-loft HEPA filter media. Proximity sensors monitor each cylinder’s stroke and feed real-time data to the PLC, which automatically adjusts lifting height based on filter media stack height to enhance meshing consistency. This precise motion control ensures that each sheet enters the folding section without skew, maintaining uniform pleat geometry.
Conveying and storage limit control for the HVAC filter pleating machine
Maintaining a steady supply of filter media allows continuous operation of the HVAC filter pleating machine. Next, a photoelectric sensor on the feed conveyor tracks the presence of material and only starts indexing when at least three sheets remain in the buffer. As a result, the downstream pleating module is always ready with material without long pauses or jerky starts. At the same time, I configured storage limit sensors to maintain a stack height of 50 to 100 mm and dynamically adjust the conveyor speed between 0.2 and 1 m/s based on the real-time consumption rate.
In addition, we also adopted an ultrasonic thickness sensor to detect any changes in stack height due to material compression and automatically compensate through micro-incremental lifting of the drive wheel. This closed-loop approach balances material throughput and pleat formation speed, achieving seamless production at speeds of up to 120 pleats per minute, while eliminating under-feeding and over-feeding that can cause pleat deformation.
Automatic shutdown when material is exhausted
An empty hopper causes unplanned downtime, which affects production and causes costly scrap. Dahe’s HVAC filter pleating machine prevents this issue by automatically stopping when the material runs out. Both the buffer sensor and the final ‘no paper’ optical detector on the feed head detect material exhaustion and trigger this shutdown. Therefore, the PLC immediately stops the pleating cycle, retracts the drive wheel, and alerts the operator through HMI alarms and email notifications, ensuring fast replenishment.
At the same time, I set the no material detection threshold to trigger within 50 milliseconds after the media is missing, ensuring that the machine stops before any blank cycle occurs. The filter pleating machine logs every stop event in its onboard database, enabling analysis of material usage patterns and reducing future stoppages. This intelligent stop not only protects machine components, but also guarantees part quality by avoiding partial or misshapen pleats.

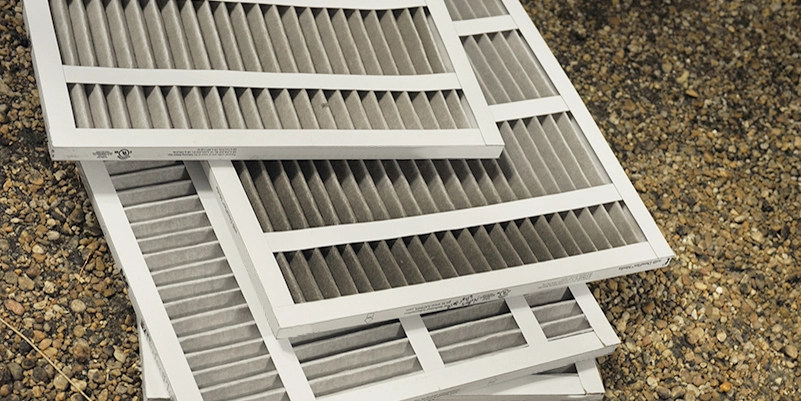

Operator Interface and Recipe Management
A powerful HMI combines all the automatic feeding functions on the Dahe HVAC filter pleating machine. At the same time, the operator can select a predefined media recipe and set the cylinder lift height, conveyor speed, sensor threshold, and sealing parameters at the touch of a button. Therefore, switching between different filter sizes is possible. The machine completes MERV-8 to MERV-13 transitions within two minutes, requiring no manual adjustments. At the same time, I designed the HMI screen to provide real-time feeding status, material buffer level, and predictive “low media” warning 30 seconds before shutdown. In addition, the interface records historical production data, cycle counts, buffer alarms, and shutdown reasons, which managers can export to MES for performance analysis.
Bringing stable automated feeding
Reliable automatic feeding for HVAC filter pleating machines demands both advanced hardware design and rigorous maintenance with continuous optimization. Technicians first calibrate the cylinder stroke and tension roller weekly to maintain ±0.1 mm feeding accuracy across all media types. By combining mature automatic feeding technology with proactive maintenance and data-driven improvements, it ensures that its air filter folding machines provide consistent high-throughput production with minimal manual intervention and maximum reliability.
