Traditional manual glue application processes are labour-intensive and inconsistent, often resulting in defects such as uneven bead width, insufficient glue or top coverage, and excessive adhesive that can deform delicate filter pleats. In contrast, the automatic glue injection production line integrates synchronised glue gun groups and precision motion control to apply adhesive evenly to the contours of pleated filter elements. This simplifies the production of pleated filter elements and raises the quality bar, making it ideal for industries that require tight tolerances, such as HVAC, automotive cabin filters, and medical air purification systems.
Automatic glue injection production line advanced glue gun group, perfectly assembled filter
The heart of the automatic glue production injection line is its advanced glue gun group, which is carefully designed to spray glue beads with micron-level accuracy. Each glue gun group has a high-precision metering pump, temperature-controlled gun barrel, and micro-nozzle array, which can dynamically switch the glue bead diameter between 0.3 mm and 1.2 mm. This flexibility allows manufacturers to customize the glue bead shape for different thin filter materials, ensuring optimal bonding and avoiding fibre leakage or filter pore clogging.

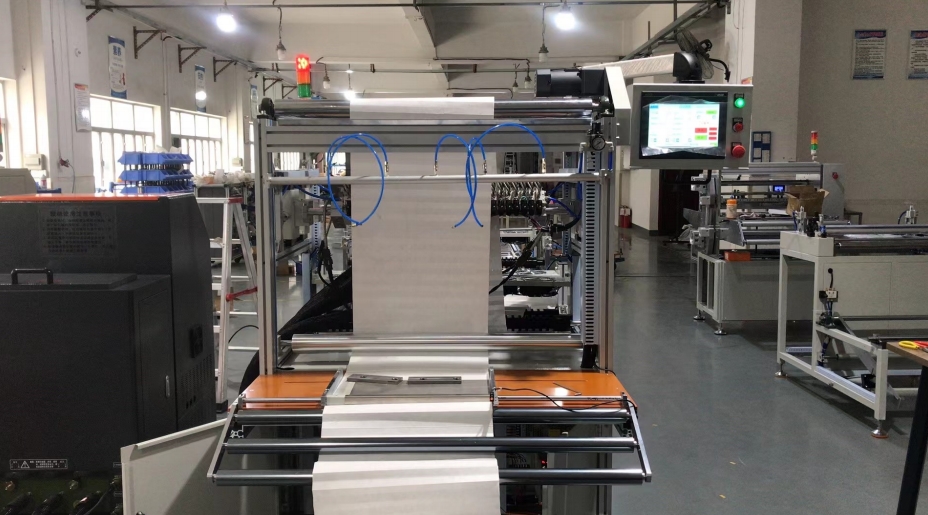

The glue gun is driven by a servo motor, moving in coordination with the rotation of the pleat drum. When the pleated filter arrives at the dispensing station, the nozzle is positioned at precise XY coordinates determined by preloaded pleat geometry CAD data. A closed-loop vision system verifies that the gun is within ±0.05 mm of the media, dynamically adjusting the vertical (Z) axis to accommodate any pleat height variations. This level of automation eliminates the need for manual fixtures and calibrations, significantly reducing setup time when switching filter designs.
High-precision dispensing, consistent quality
One of the most significant advantages of using an automated glue production injection line is significantly improved consistency and quality control of thin filter materials. Manual dispensing methods often have difficulty maintaining uniform bead width and position, resulting in product differentiation and increased scrap rates. The automated dispensing system uses closed-loop control of flow rate, pressure, and nozzle temperature to ensure that each bead meets precise specifications.
To monitor and maintain quality, the automated dispensing line scans the bead profile in real-time with a laser triangulation sensor, capturing cross-sectional data at up to 2,000 points per second. A software algorithm compares the measured glue bead geometry to the target parameters. The system automatically corrects the pump pressure or rack speed if the deviation exceeds the 2% tolerance. By leveraging these features, manufacturers can achieve unparalleled consistency, reduce defect rates to less than 0.5%, and guarantee the high bonding performance required for high-efficiency air particulate filters and precision automotive intake systems.
Continuous and staggered glue injection modes for automatic glue injection production line
Automated glue injection production lines allow operators to choose continuous or staggered glue injection modes based on the filter’s design and performance requirements. Continuous glue injection forms a seamless glue strip along the entire length of each pleat valley, ideal for filter elements requiring an airtight seal. In this mode, the glue gun maintains a steady flow rate and synchronizes it with the pleat valley feed, ensuring uninterrupted glue coverage.

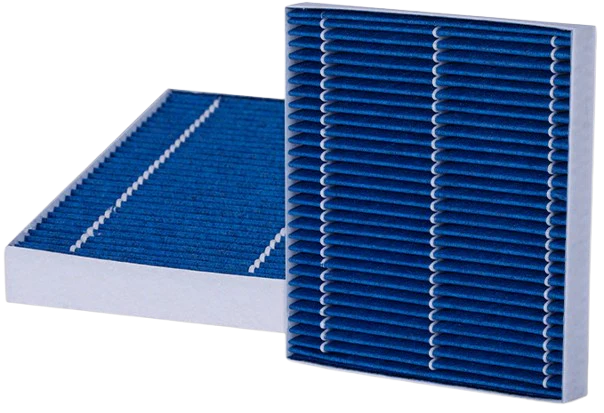

The staggered glue injection mode applies discrete glue beads at predetermined intervals, usually at the peaks and valleys of the pleats, thereby reducing adhesive consumption while maintaining adequate structural bonding. This mode proves handy when manufacturers use thin filter materials in automotive cabin air filters or HVAC pre-filters, as minimizing glue weight helps improve airflow characteristics and reduce energy consumption in the end-use system. Switching between modes is as simple as selecting the desired mode through the line’s touchscreen. This dual-mode capability ensures that the automated glue dispensing line can adapt to various filter designs and achieve optimal adhesive use and performance.
Improve production efficiency and reduce energy consumption
In high-volume filter manufacturing, production efficiency and energy consumption are key indicators. Traditional manual glue dispensing operations are labour-intensive and have low output due to long setup and quality inspection intervals. Engineers designed the automated glue dispensing line for continuous high-speed operation.
The system achieves energy efficiency by integrating a servo-driven motion platform and a precision metering pump. These components only consume power during active dispensing cycles. Between dispensing, the pump and motor enter a low-power standby mode. Overall, this architecture can reduce total line energy consumption by up to 25% compared to hydraulic or pneumatic dispensing systems. These efficiency gains can directly translate into lower operating costs for manufacturers in areas with high energy costs or high sustainability goals.
Simplified operation for reliable, high-quality output
When using the automatic glue injection production line, operators can use an intuitive touchscreen human-machine interface to guide them through setup, recipe selection and real-time monitoring. Maintenance procedures are also simple. Modular glue gun groups allow for quick replacement of nozzles and pumps without special tools. Automatic cleaning cycles flush residual adhesive from the barrel and nozzle to prevent clogging when switching glue types. The line’s self-diagnostic function alerts technicians to component wear or parameter drift before quality issues occur. With these user-friendly features, the automatic glue injection production line can accurately and reliably dispense glue for thin filter media to achieve high-quality results.
Better achieve high-precision filter glue dispensing assembly
By leveraging advanced glue gun groups, real-time quality monitoring, and continuous and staggered dual-mode dispensing capabilities, manufacturers can achieve unparalleled precision, efficiency, and product consistency. With its high throughput, energy-saving architecture, and simple and powerful user interface, it is undoubtedly an indispensable tool for filter element manufacturers striving to meet strict quality standards and tight production schedules.
