If you want to manufacture high-quality, high-precision air filters and automotive air conditioning filters, then an essential tool you need to use during the production process is a paper pleating machine. In the air filter manufacturing industry, a paper pleating machine is mainly used to complete the filter paper folding process. Dahe Intelligent can develop its filter production equipment and provide state-of-the-art paper pleating machines for air filter devices and automotive air conditioning filter manufacturers. This guide will share the functions, advantages, and usability of paper pleating machines in these industries.
What is a Paper pleating machine, and why is it essential?
A paper pleating machine folds or pleats filter media into a uniform shape, thereby increasing the surface area available for filtration. The pleating process is critical because it determines the efficiency of the filter and its ability to capture particles. These machines can process various materials, including synthetic fibers, cellulose, and composite filter media, making them widely used in producing air filters in HVAC systems, industrial applications, and automobiles. They feed raw materials into the system and then process them according to precise specifications. More advanced models offer programmable pleat depth, spacing, and height settings to ensure consistent quality throughout production.
Paper pleating machines allow manufacturers of automotive air conditioners and home air conditioning filters to produce products with balanced airflow and filtration efficiency. This precision optimizes the capture of dust, pollen, and other pollutants.
Application of paper pleating machines in air filter manufacturing

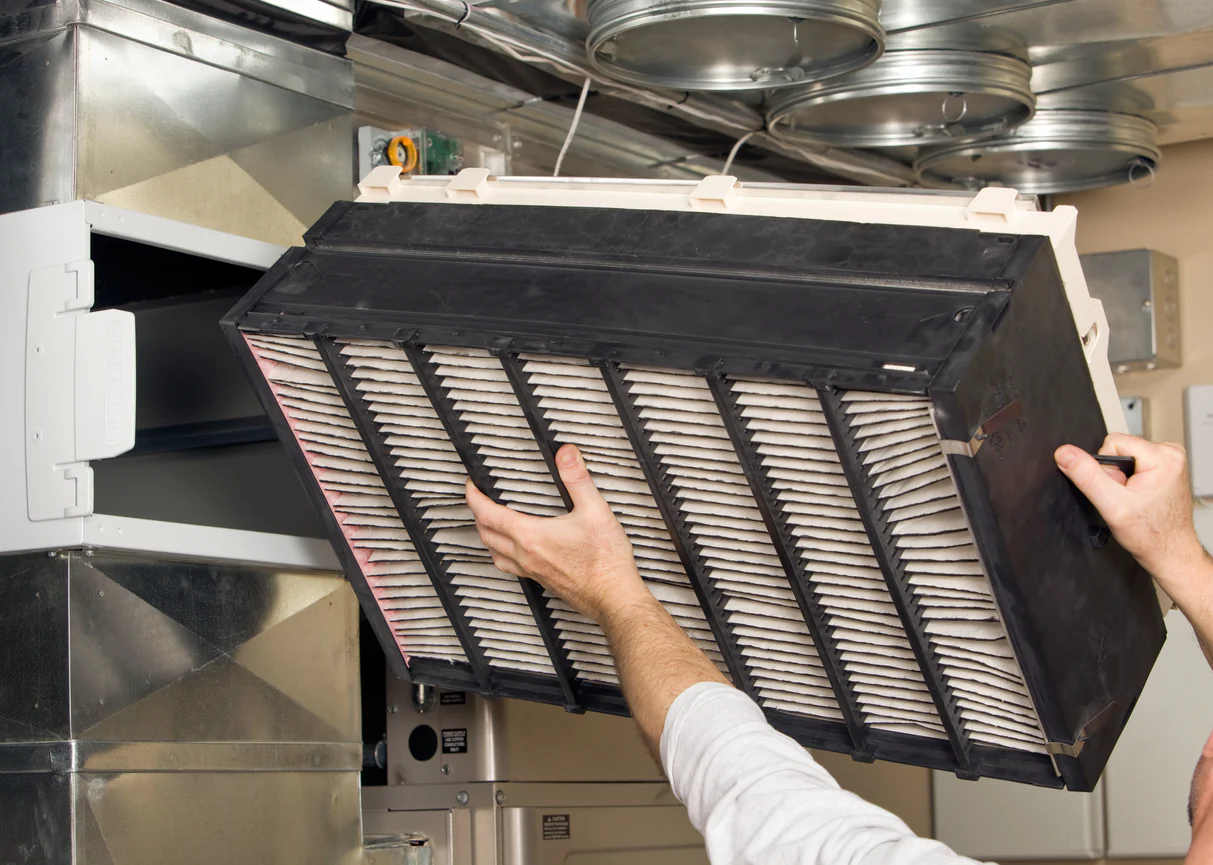

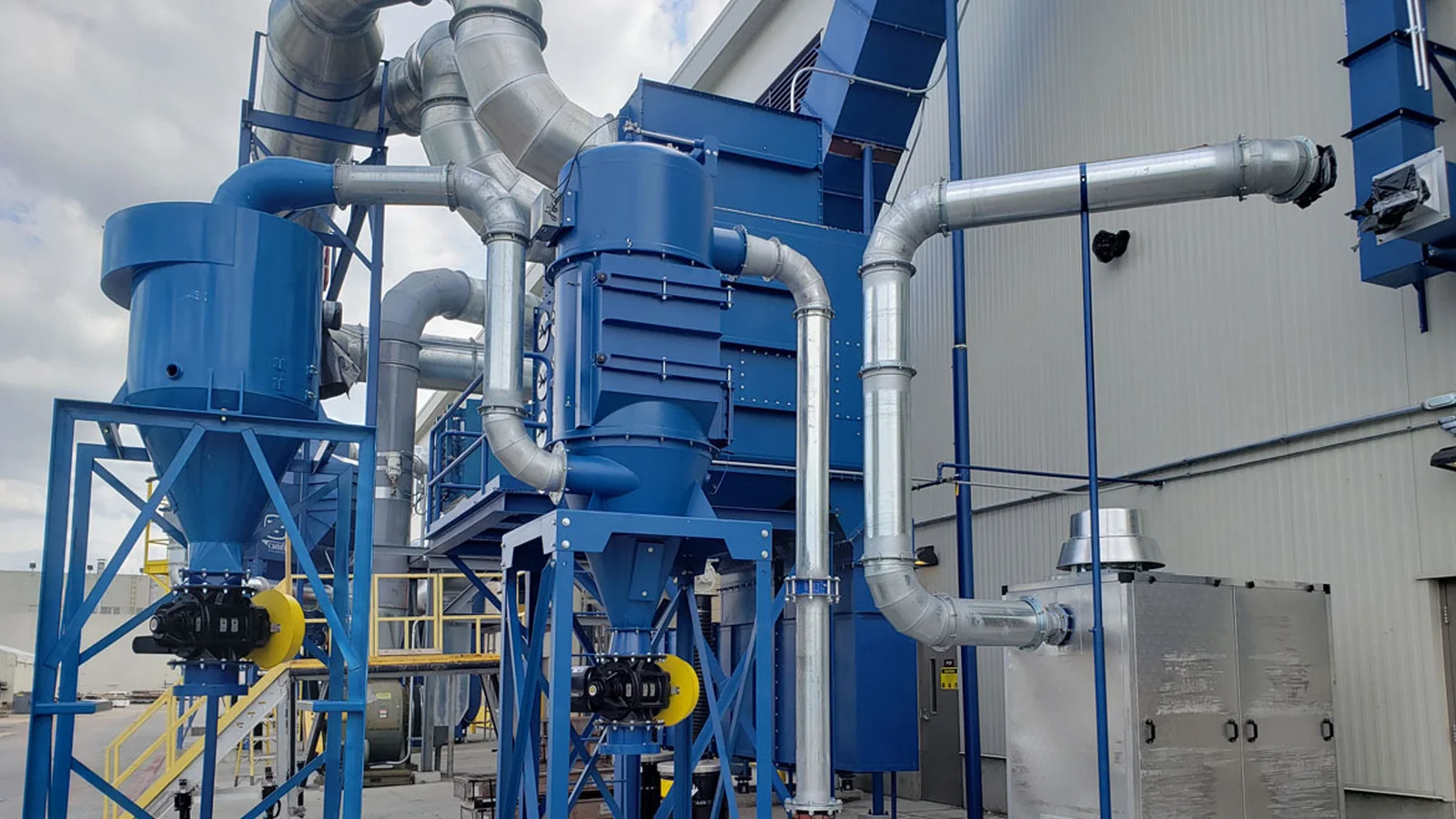

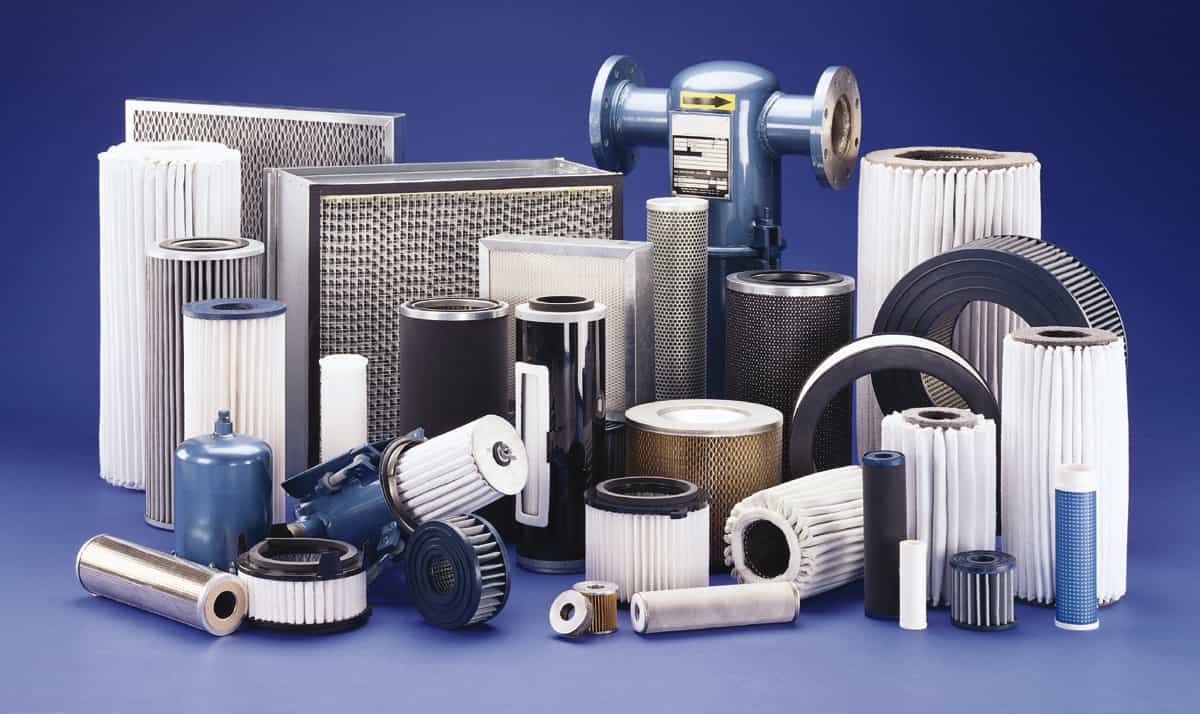

Paper pleating machines are vital in producing air filters in HVAC systems and industrial equipment. Their versatility enables manufacturers to manufacture filters with different pleat patterns and densities according to specific filtration requirements. For example, HEPA filters require closely spaced pleats to capture tiny particles, while standard air filters may use wider spacing to optimize airflow. In addition, modern paper pleating machines are equipped with edge banding, cutting, and adhesive applications, which can simplify the production process while reducing labor costs and improving product quality.
The role of paper pleating machines in automotive filter production

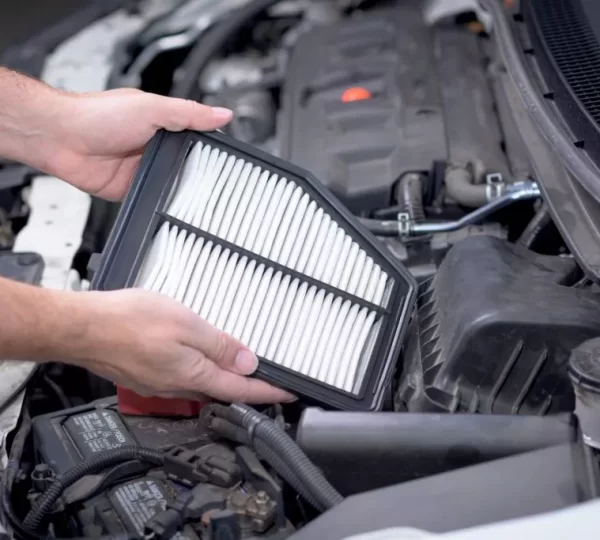

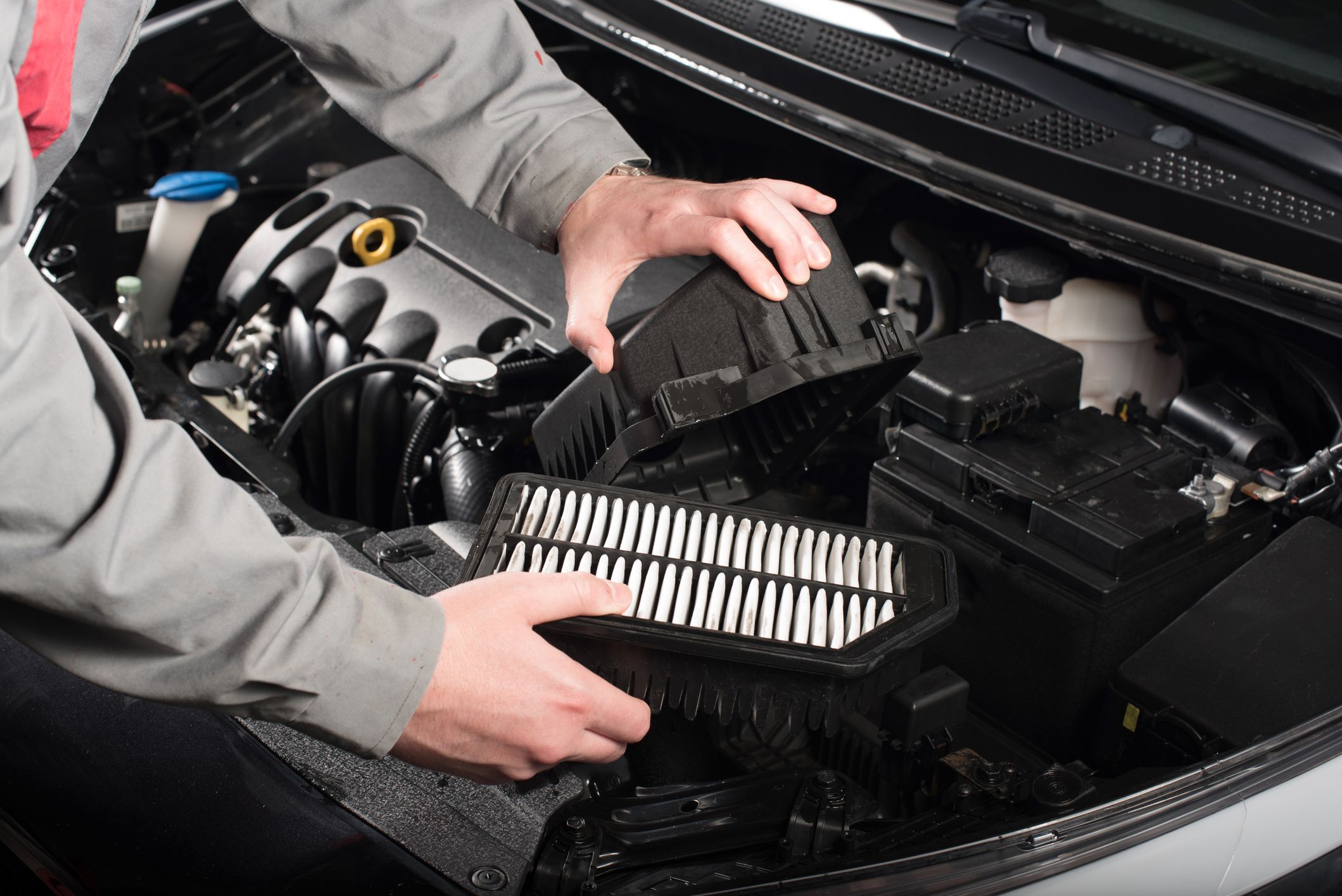

Automotive air conditioning and engine air filters maintain vehicle performance and passenger comfort, and paper pleating machines enable manufacturers to efficiently produce these filters to meet the automotive industry’s demand for high-quality parts. Because automotive filters require precise pleat design to ensure optimal airflow and filtration, paper pleating machines achieve this by providing adjustable pleat height, pitch, and depth settings. The pleating process for automotive air conditioning filters must accommodate additional features, such as an activated carbon layer or an antibacterial coating. The paper pleating machine handles multiple layers of filter media, seamlessly integrating these features into the final product.
Features of Dahe Intelligent Paper pleating machine

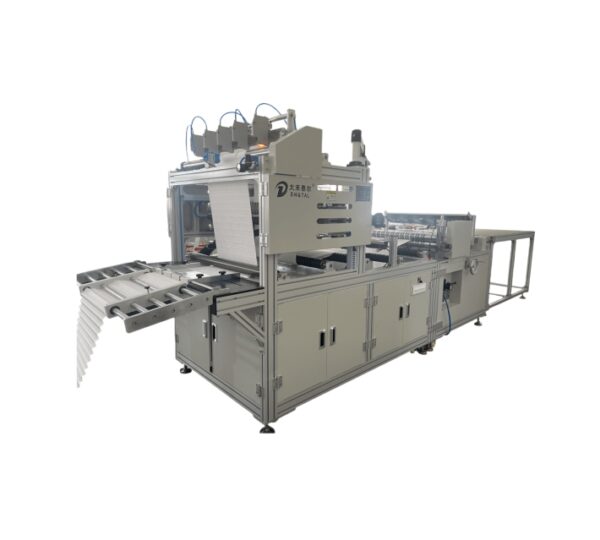

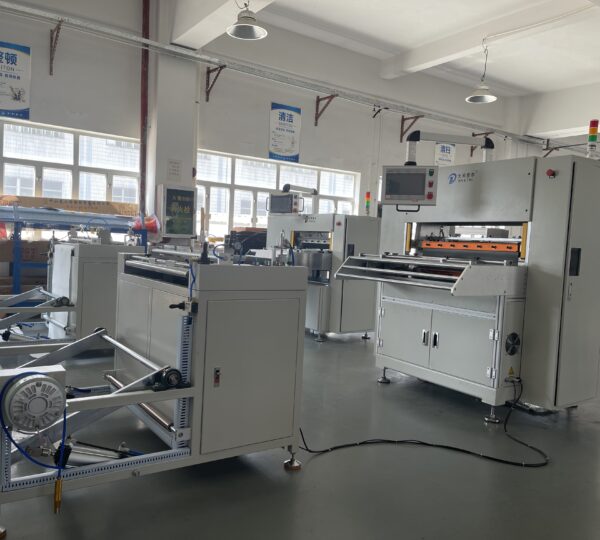

The paper pleating machines provided by Dahe Intelligent include slitting and feeding machines and filter paper folding machines. The paper feeder consists of a feeding mechanism and a traction mechanism. The feeding mechanism uses an inflatable shaft with a scale, and a magnetic powder brake equips the feeding shaft to ensure the stability of the material tension during the conveying process. In addition, the indexing mechanism is driven by a 750W motor, and the feeding drive wheel has a cylinder lifting function for convenient feeding. The feeding has a conveying and storage material limit function to ensure the consistency of the folded material. The equipment has an automatic shutdown function for lack of material.
Dahe Intelligent constructs the entire machine from steel, and a servo motor drives the folding and lifting, which powers the rack and pinion mechanism for greater stability. At the same time, the front workbench has a preheating function, and the rear workbench has a heating and insulation function to ensure stable forming. The workbench uses the stepper motor to drive the linear guide rail up and down to adjust different folding heights. Observation windows are installed in the front and rear boxes of the equipment, allowing operators to monitor the situation and adjust parameters to reduce material waste. There is also an automatic shutdown alarm function for equipment that lacks material.
Why Dahe Intelligent is your first choice？
Dahe Intelligent focuses on researching, developing, producing, and selling filter production equipment. It can provide innovative solutions and customize the equipment size according to different filter manufacturers’ needs to meet the filtration industry’s unique needs. We design our machines to handle various applications, from HVAC filters to automotive air conditioning filters. Its advanced features, such as high-speed operation and programmable settings, ensure that manufacturers can achieve precision and efficiency in production. In addition to providing high-quality equipment, Dahe Intelligent also provides comprehensive after-sales support, including installation, training, and maintenance services.
Meeting the demand for high-quality filters
As people’s awareness of air quality and environmental issues continues to increase, the demand for high-performance air and automotive air conditioning filters continues to grow. Dahe Intelligent’s paper pleating machine can meet this demand well, enabling manufacturers to produce efficient, reliable, and affordable filter elements.
