The air filter pleating machine produces high-performance filters in numerous industries, including HVAC systems, automotive, cleanrooms, and industrial applications. These machines are designed to produce pleats of various shapes and sizes, each tailored to meet specific filtration requirements. This article will share the different types of pleats that air filter pleating machines can produce and their applications.
Standard pleats produced by air filter pleating machine

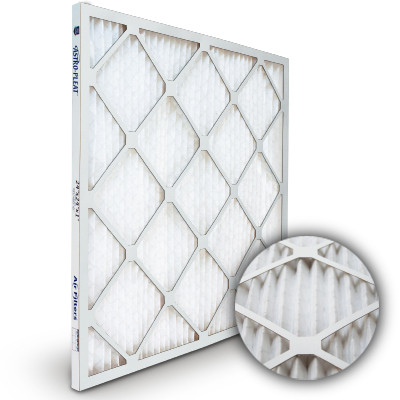

The standard pleat type is the most commonly used, characterized by uniform pleat spacing and depth. These pleats are widely used in air filters for HVAC systems and general filtration. Standard pleats maximize the filter media’s surface area, enabling it to capture airborne particles.
Air filter pleating machines have adjustable settings to produce standard pleats of different heights and spacings. This allows manufacturers to customize filters for specific airflow and filtration requirements. For example, taller pleats increase the surface area of the filter, making it ideal for environments with high particulate matter.
Small pleats produced by air filter pleating machine

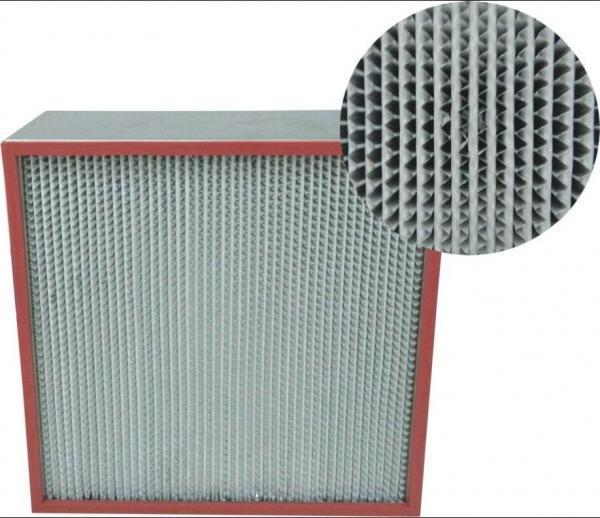

Micro pleats feature smaller pleat sizes and closer spacing, providing significantly higher filter media density within the same frame size. These pleats are often used in high-efficiency particulate air (HEPA) applications, such as clean rooms, laboratories, and medical facilities.
Air filter pleating machines designed specifically for micro pleating are equipped with precision tooling to ensure uniformity and consistency, which is critical to maintaining filter efficiency. The compact arrangement of micro pleats improves the filter’s ability to capture fine particles while maintaining low-pressure drop. Manufacturers often choose micro pleats to meet environmental requirements that require high air quality and low risk of contamination.
Making wavy pleats
Wave pleats, also known as sinusoidal pleats, have a unique undulating shape that enhances airflow distribution while maintaining high filtration efficiency. These pleats are often used in automotive and industrial filters that need to minimize airflow resistance without compromising filtration performance.

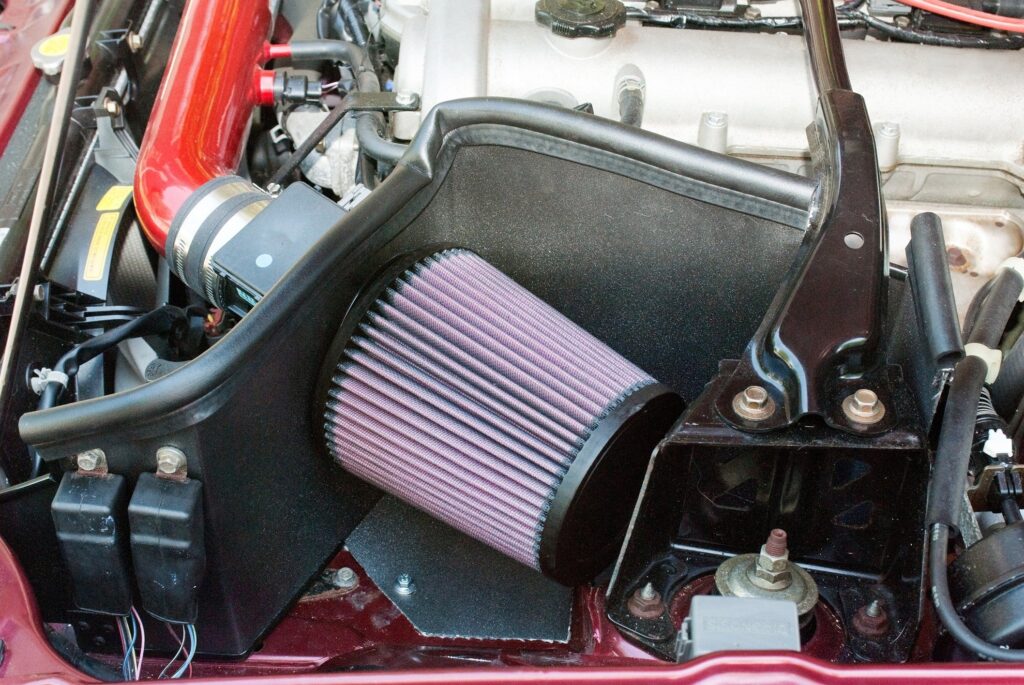

Air filter pleating machines that produce wavy pleats use specialized tooling to create the sinusoidal pattern, ensuring precision and durability. The design reduces pressure drop and promotes uniform airflow, making the wave pleats suitable for applications such as engine air intake filters. The wavy design also provides greater structural integrity, helping the filter withstand high airflow speeds and harsh environmental conditions.
Producing V-Pleats
V-pleats are characterized by their unique V-shaped pattern, which balances high filtration efficiency and airflow capacity. These pleats are often used in HVAC filters and other systems where limited space and a compact and efficient design are required.
Air filter pleating machines capable of producing V-pleats are carefully designed to ensure consistent pleat angles throughout the filter. The V-shaped structure is strong and resists deformation over time, ensuring long-lasting performance. In addition, V-pleats are particularly suitable for applications where the filter needs to handle medium to high airflow rates without compromising particle capture. Their versatility makes them ideal for residential, commercial, and industrial filtration systems.
Producing Zigzag Pleats
Zigzag pleats are an innovative design that combines the advantages of standard pleats and mini pleats to improve filtration efficiency and structural integrity. These pleats are often used in applications that require high-performance filtration and durability, such as air purifiers and industrial dust collectors.
Air filter pleating machines explicitly designed for zigzag pleating utilize advanced tooling to create an alternating pattern, increasing the filter media’s surface area while maintaining a compact design. This configuration allows for efficient particle capture and extended filter life. Zigzag pleats also improve airflow distribution, reduce the risk of hot spots, and ensure uniform particle capture across the filter.
Versatility of Air Filter Pleating Machines
Air filter pleating machines are essential for producing various pleat types, each designed to meet specific filtration needs. From standard pleats for general applications to micro pleats for high-efficiency filters to custom designs for specialized industries, by understanding the different pleat types that air filter pleating machines can produce, manufacturers can choose the right design to optimize filter performance and meet various market needs.
