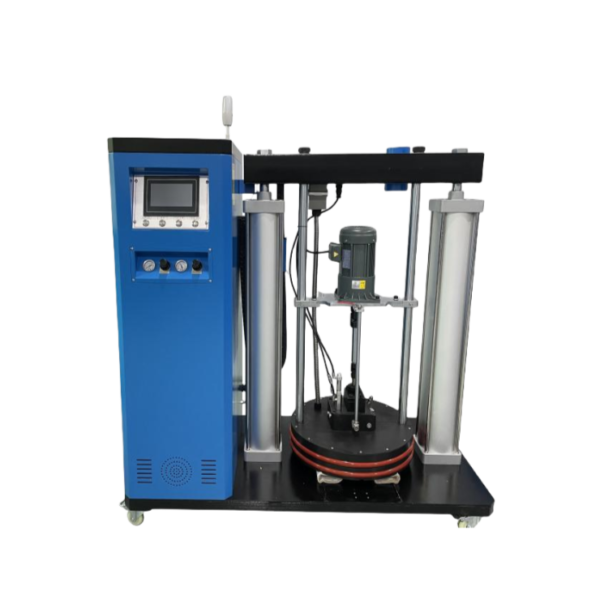

PUR55 intelligent hot melt glue machine

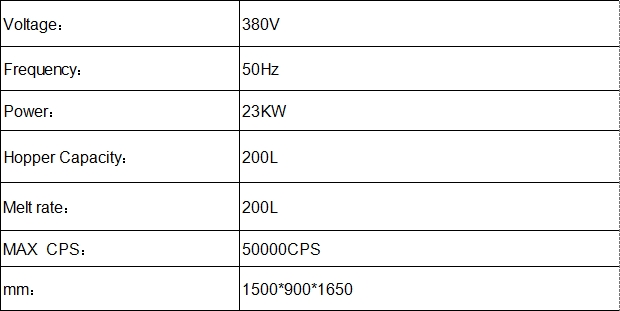

PUR55 intelligent hot melt glue machine features and parameters:

• A new guide reflux device (safety valve) will provide more accurate and stable pressure and flow adjustment.
• Frame-type body structure, simple and quick installation and maintenance.
• Double-layer permeable Teflon anti-carbonization coating in the melting cylinder, progressive fin-shaped heating bottom layer, improve sol efficiency.
• Double-layer filtration of the body flow channel effectively prevents iron filings and debris from entering the glue channel and prevents the flow pump from getting stuck and damaged.
• Precision metering pump ensures the stability and continuity of glue output.
• Intelligent PID constant temperature, automatic timed on/off preheating, one-button insulation, glue level low glue addition reminder.
• Imported heating wire and K-type universal thermocouple from the United States, quantitative glue output, encoder glue, and automatic glue spray compensation.

Characteristics and parameters of hot melt adhesive insulation hose：

It uses a heating wire imported from the United States and a sensor imported from Germany to heat and control the temperature. It is resistant to high pressure and can be bent. It connects the hot melt adhesive host and the spray gun group. The length can be customized according to actual needs. The interior is a heat-resistant and pressure-resistant American imported Teflon hose, and the exterior is covered with a stainless steel metal braided mesh to enhance its pressure resistance. The multi-layer insulation material and heat-resistant insulation material cover the heating wire to extend the service life and improve safety. It uses American aerospace technology plug-ins and Teflon liner, which is not easy to carbonize and has a long service life.

Automated production lines have a flexible installation method without space restrictions. They use Teflon high-pressure pipes and thickened liners (wall thickness 1.2MM). This effectively prevents the carbonization of hot melt adhesive, and the working pressure can reach 120KG.

Hot melt adhesive manual glue gun characteristics and parameters：

The new generation of gun body shells in 2018 is made of imported materials, which can withstand 300 degrees high temperature, ensuring that it will not deform under long-term high-temperature use, and the gun group is light and convenient.

1. The unique protective gear design prevents operators from accidentally getting scalded during work.
2. Make up for the work demand that the fixed gun group cannot be moved.
3. The universal joint combines European advanced technology, which is flexible and durable.
4. The imported heating tube and imported temperature sensor from the United States have accurate temperature control.

100NE high-frequency spray gun technical parameters:
