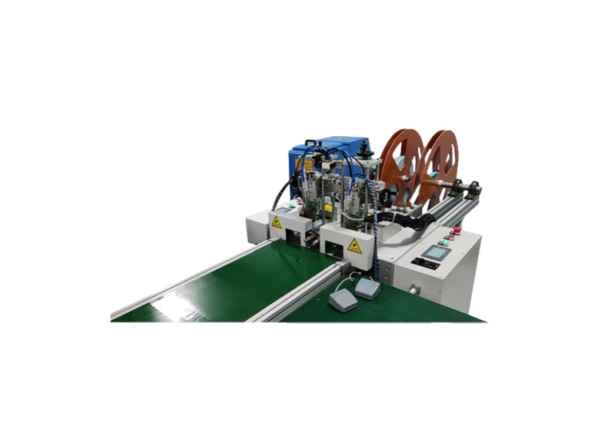

Automatic edge strip scraper–double station

Equipment Advantages：

• PLC control, dual touch screen operation. The two sides of the station can produce different side strips simultaneously so that two side strip specifications can work together.
• Multi-machine parameter storage and call.
• Automatically feed the coil, set the side strip length and the size of the scraped glue, scrape the glue, and cut.
• A two-sided half-cutting function can realize L-shaped or U-shaped cutting folds and scrape glue on the side strip.
• The gear drive is changed to a synchronous belt pressure wheel drive structure, which makes the length control more precise, the pressure wheel can be adjusted in a higher range, and the applicable side strip thickness range is wider.
• Equipped with a multi-station foot switch, two operating modes are manual and automatic.

Suitable filters for production:
